312311 ENGINEERING DRAWING IMPORTANT QUESTIONS FOR PRACTICE



IMPORTANT QUESTIONS

1) The front view of line AB is parallel to H.P., 10 mm above it and 60 mm long. End A is 10 mm in front of V.P. and end B is 54 mm in front of V.P., Find the true length and inclination of line with V.P.

2) A circular plate of negligible thickness of 50 mm diameter is resting on H.P. on one of its point on periphery. The surface of plate is perpendicular to V.P. and inclined to H.P. by 30°. Draw its projections.

3) A line AB is 60 mm long with inclinations of 45° to H.P. and 30° to V.P. The end A of the line is 15 mm above H.P. and 12 mm in front of V.P. Draw the projections.

4) A circular plate of 60 mm diameter is inclined to the H.P. in such a way that, the top view appears to be ellipse of minor axis 36 mm. Draw the projections of the plate and find the inclination with H.P.

 5) For the pictorial view shown in Figure  . Draw – i) Sectional view along A–A. ii) Top view.



Engineering mathematics Videos: click Here

6)For the pictorial view shown in Figure . Draw – i) Sectional view along A–B. ii) Plan





7) For the pictorial view shown in Figure . Draw – i) Sectional view along A.A. ii) Top view iii) Side view



Engineering Mechanics : Click Here

8) A cube of 30 mm side is resting on one of its corner on the H.P. Draw the projections when the base is inclined at 45° to H.P. and axis is parallel to V.P.

 9) A cylinder with base diameter 50 mm and height 60 mm is resting on a point of circumference on H.P. with axis inclined at 45° to H.P. and parallel to V.P. Draw the projections.

  10) A square prism side of base 40mm, height 75mm kept on the H.P. on its base with its rectangular faces equally inclined to V.P. It is penetrated by a horizontal square prism of side of base 30mm, axis length 75mm such that the axes of the two prisms bisect each other at right angles. The two rectangular faces of the horizontal square prism are equally inclined to H.P. and axis is parallel to both H.P. and V.P. Draw the projections of solids showing the lines of intersection.

 11) A vertical cylinder of 60mm diameter is completely penetrated by another cylinder of 40mm diameter. Length of both cylinders is 80mm. considering the axis of penetrating cylinder parallel to V.P., draw the projections showing curves of intersection.

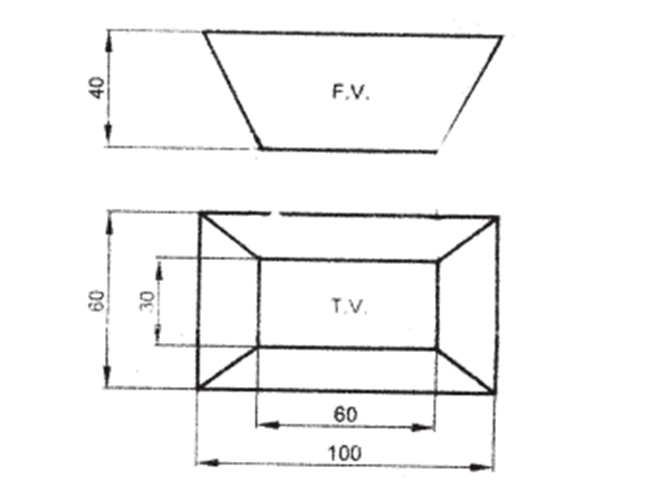

 12) Figure  shows the front view and top view of a tray. Draw the development of lateral surface on a flat sheet such that it can be folded in the form of tray.



13 ) Draw the development of lateral surface of cone shown in Figure
