ENGINEERING DRAWING IMPORTANT QUESTIONS (EDR 312311 & 22307) SEM II

-

               ENGINEERING DRAWING
             (EDR 312311 & 22307)  SEM II

                     IMPORTANT QUESTIONS (With solution)

QU. 2  A right circular cone, base 50 mm diameter and axis 60 mm long, is resting on its apex on H.P. Draw the projection of cone, when the axis is parallel to V.P. and inclined at 450 to H.P.



                                          BODY LOTION OFFER

        ASSIGNMENT : Sectional Views



QU-1 Fig.- shows the pictorial view of an object.
Draw : (i) Sectional front view along symmetry of the object (ii) L.H.S.V   iii) Top View
Use first angle method.





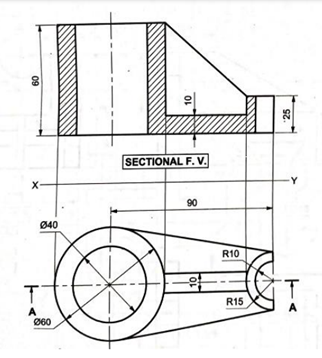

QU-2       Fig.- shows isometric view of a CI block.
Draw :
(i) Sectional F.V. in the X-direction
(ii) T.V.
(iii) L.H.S.V.





                                            OR ( Observe another figure. )

QU.3              Fig.  shows isometric view of a machine component.
          Draw the following views :
 (i) Sectional F.V. looking in the direction of X (Section B – B)        (ii) T.V.








Answer of above questions

QU.1






QU. 2

 BODY LOTION OFFER

QU. 3








For Practice ( Imp)

Fig.- shows the pictorial view of an object. Draw : (i) Sectional front view in the X-direction (ii) Side view
Use first angle method.



Fig. 4.2 shows pictorial view of an object. Draw the following views :
(i) Sectional F.V. looking in the direction of X (Section B-B).
(ii) R.H.S.V.
